Do you find the need to expand your Diagnostic Imaging practice?
But you don’t want to tie up capital expenditures this year for the expansion?
If you have an established practice with a steady patient stream, you may qualify
for our Fee Per Scan Program.
Under this program, Image Technology will provide you with the following:
  • Delivery and setup of diagnostic equipment in your facility or in a mobile solution.
  • Service and maintenance of this equipment will also be fully included.
  • Image Technology Consulting, Inc. will charge you a nominal fee per scan completed. The scanner keeps track of the patient flow and at the end of the month you only pay for the scans you have done.
  • You can provide the space, technicians and patients, or under special conditions we can provide a technician for you to run your system to streamline your operation even further.
  • ***Fee per scan program is available only in the states of Louisiana, Texas, Oklahoma, and Arkansas.
  • Image Technology, Inc. has several mobiles we can lease or rent to provide temporary interms while your equipment is getting installed or repaired in house.

Request Parts Today!
In search of parts?
Click below to find what you are looking for.
  1. Philips Achieva Mri User Manual Download
  1. The Diamond Select Achieva 1.5T helps you to do more in every way. Fast exams, a wide application range, and enhanced workflow are just some of the results. Exceptional quality in challenging applications, across virtually all patients.
  2. Publication for the Philips MRI Community Issue 36 – December 2008 Elite Clinical Solution enhances breast imaging Achieva 3.0T TX with MultiTransmit RF technology Non-contrast-enhanced MRA for renal arteries Munson: shoulder coil added value to Panorama HFO Patient throughput boosted at Klagenfurt institute MR/x-ray/operating suite developed.

PDF File: Philips Achieva Mri User Manual - PAMUMPDF-107 2/2 Philips Achieva Mri User Manual Read Philips Achieva Mri User Manual PDF on our digital library. You can read Philips Achieva Mri User Manual PDF direct on your mobile phones or PC. As per our directory, this eBook is listed as PAMUMPDF-107, actually. Inside and out, the Achieva is a friendly, open system designed for optimal patient comfort and maximized workflow with high functionality. The Achieva 1.5T can be upgraded to Achieva I/T, with three configurations optimized for MR guided interventions and therapy: Variable (op. Depend.) Philips Medical System is the diagnostics business.

Philips Intera 1.0T

Features That Simplify:
• SmartExam: Assures consistent and reproducible exam results
• ExamCards: Automates the most complex studies
• MR Workspace: Drives scanner utilization
• NetForum: Provides Instant access to online community

OmniStellarPowerPulsar
Type of MagnetF2000
Gradient Amplifier:234274271 / 281
RF Amplifier:S22 / S24
Cooling ColdheadHC-8E1 Compressor
Cooling Grad.CoilAirEaton Williams
Cooling Grad. Amp.AirNeslab
Acquesition Type:BDAS
No. of channels:6ch

SOFTWARE POSSIBILITIES

Release8/9101112
Host ComputerDS10XW8000XW8000 / 8200XW8200 / 8400
ReconstructorAP550XW6000XW6000 / 6200XW6200 / 6400

POSSIBLE COIL COLLECTION

Q-BodyC1Syn Head Neck
Quad HeadC3Syn Spine
Quad NeckC4Syn Flex S / M / L
BreastE1Syn Cardiac
SpineR1Syn Body
EndoCardiac Flex
KneeQuad Knee Foot
Philips Intera 1.5T

Features That Simplify:
• SmartExam: Assures consistent and reproducible exam results
• ExamCards: Automates the most complex studies
• MR Workspace: Drives scanner utilization
• NetForum: Provides Instant access to online community

OmniStellarPowerPulsar
Type of MagnetF2000
Gradient Amplifier:234274271 / 281
RF Amplifier:S23
Cooling ColdheadHC-8E1 Compressor
Cooling Grad.CoilAirEaton Williams
Cooling Grad. Amp.AirNeslab
Acquesition Type:BDAS
No. of channels:6ch
MasterExplorerNovaNova Dual
Type of MagnetF2000
Gradient Amplifier:2 x 274+ Switch2 x 271 / 281+ Switch
RF Amplifier:S23
Cooling ColdheadHC-8E1 Compressor
Cooling Grad.CoilAirEaton Williams
Cooling Grad. Amp.AirNeslab
Acquesition Type:BDAS
No. of channels:6ch

SOFTWARE POSSIBILITIES

Release8/9101112
Host ComputerDS10XW8000XW8000 / 8200XW8200 / 8400
ReconstructorAP550XW6000XW6000 / 6200XW6200 / 6400

POSSIBLE COIL COLLECTION

Q-BodyC1Sense SpineSense PV
Quad HeadC3Sense BodyE1
Quad NeckC4Sense CardiacR1
BreastSense Shoulder 4Sense Flex S, M, L
SpineSense Wrist 4Sense Head / Neck
EndoCardiac FlexSense Head
Quad KneeQuad Knee FootSense Pediatric
Philips Intera 3.0T

Features That Simplify:
• SmartExam: Assures consistent and reproducible exam results
• ExamCards: Automates the most complex studies
• MR Workspace: Drives scanner utilization
• NetForum: Provides Instant access to online community

MasterQuasar
Type of MagnetF2000
Gradient Amplifier:2 x 2742 x 271 / 281
RF Amplifier:S26
Cooling ColdheadHC-8E1 Compressor
Cooling Grad.CoilEaton Williams
Cooling Grad. Amp.Neslab
Acquesition Type:BDAS
No. of channels:6ch

SOFTWARE POSSIBILITIES

Release8/9101112
Host ComputerDS10XW8000XW8000 / 8200XW8200 / 8400
ReconstructorAP550XW6000XW6000 / 6200XW6200 / 6400

POSSIBLE COIL COLLECTION

Q-BodyC1Syn Head Neck
Quad HeadC3Syn Spine
Quad NeckC4Syn Flex S / M / L
BreastE1Syn Cardiac
SpineR1Syn Body
EndoCardiac Flex
KneeQuad Knee Foot
Philips Intera Achieva 1.5T

The Philips Acheiva 1.5T MRI machine is a quick and user-friendly machine. The Achieva includes SmartExam functions that allow for uniform image quality across patients, technicians/operators, patient position and pathology. This is a fast scanner that can complete a full spinal and brain scan in less than 20 minutes.
Patient table height can be lowered to 20-inches, and the patient support enables patients weighing up to 550 pounds. It also has variable lighting, a fresh air supply and a handheld call button.

PulsarNovaNova Dual
Type of MagnetF2000
Gradient Amplifier:271 / 2812 x 271 / 2812 x 271 / 281 + Switch
RF Amplifier:S23
Cooling ColdheadHC-8E1 Compressor
Cooling Grad.CoilEaton Williams
Cooling Grad. Amp.Neslab
Acquesition Type:CDAS
No. of channels:8ch
PulsarNovaNova DualPulsarNova Dual
Type of MagnetF2000
Gradient Amplifier:271 / 2812 x 271 / 2812 x 271 / 281 + Switch781787
RF Amplifier:S30
Cooling ColdheadLCC
Cooling Grad.CoilLCC
Cooling Grad. Amp.LCC
Acquesition Type:CDAS
No. of channels:16ch

SOFTWARE POSSIBILITIES

Release122.63.2
Host ComputerXW8000 / 8200XW 8200 / 8400XW8200 / 8400 / 8600Z400, XW8600 / 8400
ReconstructorXW6000 / 6200XW6000 / 6200 / 6400XW6200 / 6400 / 6600Z600 / 400, XW6600 / 6400

POSSIBLE COIL COLLECTION

Quad HeadC1Quad Knee FootSense Breast 4, 7Sense Ped Heads
BreastC3Sense SpineSense Foot Ankle 8Sense Shoulder 4, 8
Quad KneeC4Sense BodySense Knee 8, 16Mammo Breast 7, 16
Endo SmallE1Sense CardiacSense NV 8, 16Sense Pediatric
EndoR1Sense Flex S, M, LSense Wrist 8, 16Sense PV
TMJ leftMicro 23mmSense Head NeckSense Spine 15Sense Ped Body 8
TMJ rightMicro 47mmSense Head 8Sense XL Torso 16
Philips Intera Achieva 3.0T

The Philips Acheiva 3.0T MRI machine is a quick and user-friendly machine. The Achieva includes SmartExam functions that allow for uniform image quality across patients, technicians/operators, patient position and pathology. This is a fast scanner that can complete a full spinal and brain scan in less than 20 minutes.
Patient table height can be lowered to 20-inches, and the patient support enables patients weighing up to 550 pounds. It also has variable lighting, a fresh air supply and a handheld call button.

Quasar
Type of MagnetRex
Gradient Amplifier:787
RF Amplifier:AN 8134
Cooling ColdheadLCC II / A
Cooling Grad.CoilLCC II / A
Cooling Grad. Amp.LCC II / A
Acquesition Type:CDAS
No. of channels:16 / 32

SOFTWARE POSSIBILITIES

Release2.63.2
Host ComputerXW8200 / 8400 / 8600Z400, XW 8600 / 8400
ReconstructorXW6200 / 6400 / 6600Z600 / 400, XW6600 / 6400

POSSIBLE COIL COLLECTION

T / R HeadSense SpineSense Wrist 4, 8
EndoSense Head 6, 8, 32Sense Spine 15
Sense Flex S, M, LSense Breast 4, 7Sense Foot Ankle 8
Sense XL TorsoSense NV 4, 8, 16Mammo Breast 7, 16
Sense TorsoSense Shoulder 4, 8Pediatric Head Spine
Sense CardiacSense Knee 6, 8
Philips achieva mri user manual version 3 0

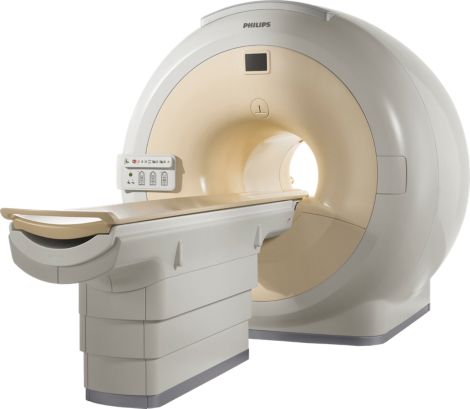

Philips Achieva 1.5T

The Philips Acheiva 1.5T MRI machine is a quick and user-friendly machine. The Achieva includes SmartExam functions that allow for uniform image quality across patients, technicians/operators, patient position and pathology. This is a fast scanner that can complete a full spinal and brain scan in less than 20 minutes.
Patient table height can be lowered to 20-inches, and the patient support enables patients weighing up to 550 pounds. It also has variable lighting, a fresh air supply and a handheld call button.

PulsarNovaNova Dual
Type of MagnetF2000
Gradient Amplifier:271 / 2812 x 271 / 2812 x 271 / 281 + Switch
RF Amplifier:S23
Cooling ColdheadHC-8E1 Compressor
Cooling Grad.CoilEaton Williams
Cooling Grad. Amp.Neslab
Acquesition Type:CDAS
No. of channels:8ch
PulsarNovaNova DualPulsarNova Dual
Type of MagnetF2000
Gradient Amplifier:271 / 2812 x 271 / 2812 x 271 / 281 + Switch781787
RF Amplifier:S30
Cooling ColdheadLCC
Cooling Grad.CoilLCC
Cooling Grad. Amp.LCC
Acquesition Type:CDAS
No. of channels:16ch

SOFTWARE POSSIBILITIES

Release122.63.2
Host ComputerXW8000 / 8200XW 8200 / 8400XW8200 / 8400 / 8600Z400, XW8600 / 8400
ReconstructorXW6000 / 6200XW6000 / 6200 / 6400XW6200 / 6400 / 6600Z600 / 400, XW6600 / 6400

POSSIBLE COIL COLLECTION

Quad HeadC1Quad Knee FootSense Breast 4, 7Sense Ped Heads
BreastC3Sense SpineSense Foot Ankle 8Sense Shoulder 4, 8
Quad KneeC4Sense BodySense Knee 8, 16Mammo Breast 7, 16
Endo SmallE1Sense CardiacSense NV 8, 16Sense Pediatric
EndoR1Sense Flex S, M, LSense Wrist 8, 16Sense PV
TMJ leftMicro 23mmSense Head NeckSense Spine 15Sense Ped Body 8
TMJ rightMicro 47mmSense Head 8Sense XL Torso 16
Philips Achieva 3.0T

The Philips Acheiva 3.0T MRI machine is a quick and user-friendly machine. The Achieva includes SmartExam functions that allow for uniform image quality across patients, technicians/operators, patient position and pathology. This is a fast scanner that can complete a full spinal and brain scan in less than 20 minutes.
Patient table height can be lowered to 20-inches, and the patient support enables patients weighing up to 550 pounds. It also has variable lighting, a fresh air supply and a handheld call button.

Quasar
Type of MagnetRex
Gradient Amplifier:787
RF Amplifier:AN 8134
Cooling ColdheadLCC II / A
Cooling Grad.CoilLCC II / A
Cooling Grad. Amp.LCC II / A
Acquesition Type:CDAS
No. of channels:16 / 32

SOFTWARE POSSIBILITIES

Release2.63.2
Host ComputerXW8200 / 8400 / 8600Z400, XW 8600 / 8400
ReconstructorXW6200 / 6400 / 6600Z600 / 400, XW6600 / 6400

POSSIBLE COIL COLLECTION

T / R HeadSense SpineSense Wrist 4, 8
EndoSense Head 6, 8, 32Sense Spine 15
Sense Flex S, M, LSense Breast 4, 7Sense Foot Ankle 8
Sense XL TorsoSense NV 4, 8, 16Mammo Breast 7, 16
Sense TorsoSense Shoulder 4, 8Pediatric Head Spine
Sense CardiacSense Knee 6, 8
Philips Ingenia 1.5T

Diagnostic confidence, explore advanced applications, and generate the productivity required to meet today’s healthcare challenges with the Ingenia 1.5T. Through dStream, Ingenia delivers premium image quality with digital clarity and speed –and with iPatient, it provides patient-centric imaging, from patient set-up to image result.

OmegaOmega HP
Type of MagnetWA Big Bore
Gradient Amplifier:781787
RF Amplifier:53 - S30 - 64
Cooling ColdheadLCC II / A
Cooling Grad.CoilLCC II / A
Cooling Grad. Amp.LCC II / A
Acquesition Type:CDAS TXR V12
No. of channels:16 - digital coils

SOFTWARE POSSIBILITIES

Release4
Host ComputerZ400
ReconstructorZ400 / Z600

POSSIBLE COIL COLLECTION

Foot Ankle 8Wrist 8Sense Knee
NVC IRF-DPosteriorAnterior
Breast 7Breast 16Knee 16
Small ExtremitySholder IRF-D
Philips Ingenia 3.0T

At the forefront of clinical excellence -- Diagnostic confidence, explore advanced applications, and generate the productivity required to meet today’s healthcare challenges with the Ingenia 3.0T. Through dStream, Ingenia delivers premium image quality with digital clarity and speed –and with iPatient, it provides patient-centric imaging, from patient set-up to image result.

OmegaOmega HP
Type of MagnetWA Big Bore
Gradient Amplifier:781787
RF Amplifier:AN 8134
Cooling ColdheadLCC II / A
Cooling Grad.CoilLCC II / A
Cooling Grad. Amp.LCC II / A
Acquesition Type:CDAS TXR V2
No. of channels:16 - digital coils

SOFTWARE POSSIBILITIES

Release4
Host ComputerZ400
ReconstructorZ400 / Z600

POSSIBLE COIL COLLECTION

Foot Ankle 8Wrist 8Sense Knee 8
NVC IRF-DPosteriorAnterior
Breast 7Breast 16T / R Knee 16
Small Extremity 8Sholder IRF-D
